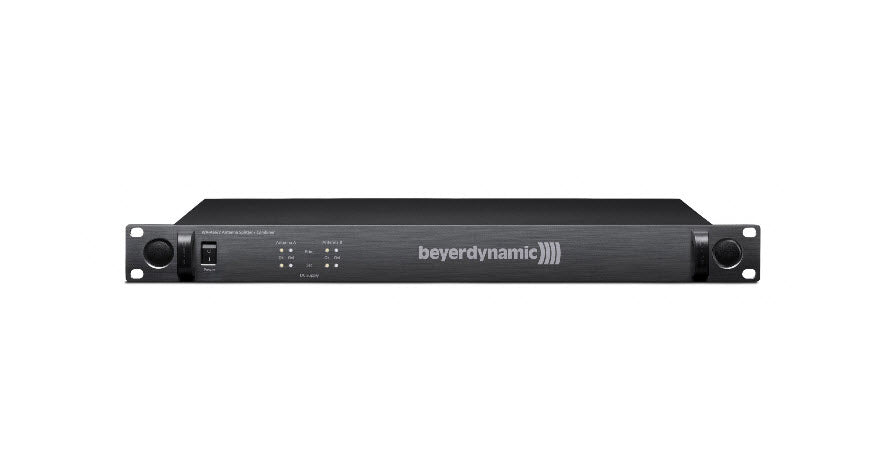

WA-AS6/2 470-790 MHz - 6-way wideband antenna splitter

The WA-AS 6/2 is a 6-way wideband antenna splitter operating in the frequency range of 470 to 832 MHz. For the diversity operation the WA-AS 6/2 is provided with two identical antenna paths. For each antenna path there are two inputs available.

Five outputs (Out 1 to ‚ Out 5‚) for the connection of receivers or cascades of receivers, as well as one output for looping the signal to other splitters (‚Through). If the Through‚ output is not required for looping, a receiver or a cascade of receivers can be connected to this output, just as with the Out 1 to Out 5 outputs. Each antenna input provides a supply voltage for active antennas or antenna amplifiers. 200 mA is available per input at a voltage of 8 V DC.

LEDs on the front panel display the status of the supply of each input. The white ‚OK‚ LED means current output in the permitted range. The red Ovl LED means current output over the permitted limit of 200 mA, in this case the supply is automatically switched off. The WA-AS 6/2 has an internal wide-range switching power supply. The dimensions and the design are adapted to the TG 1000 dual receiver, to create an optimal interplay with the TG 1000 system.
