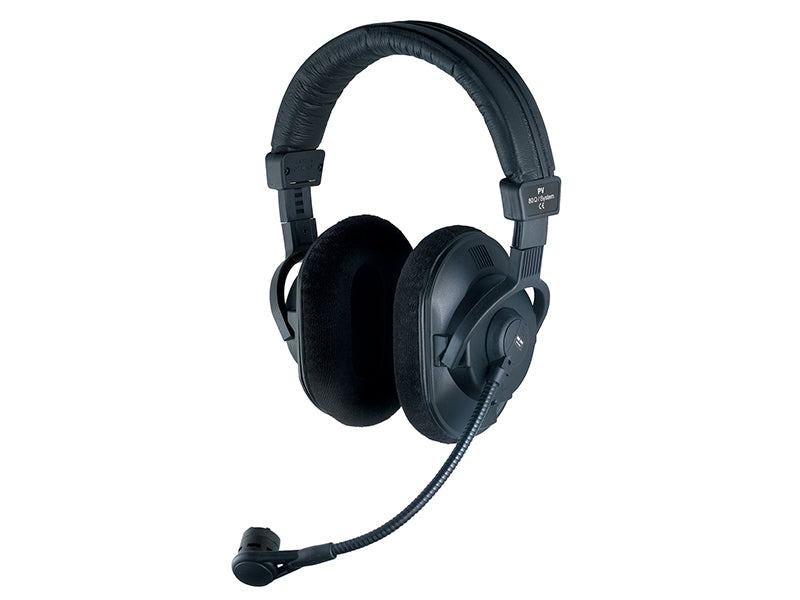

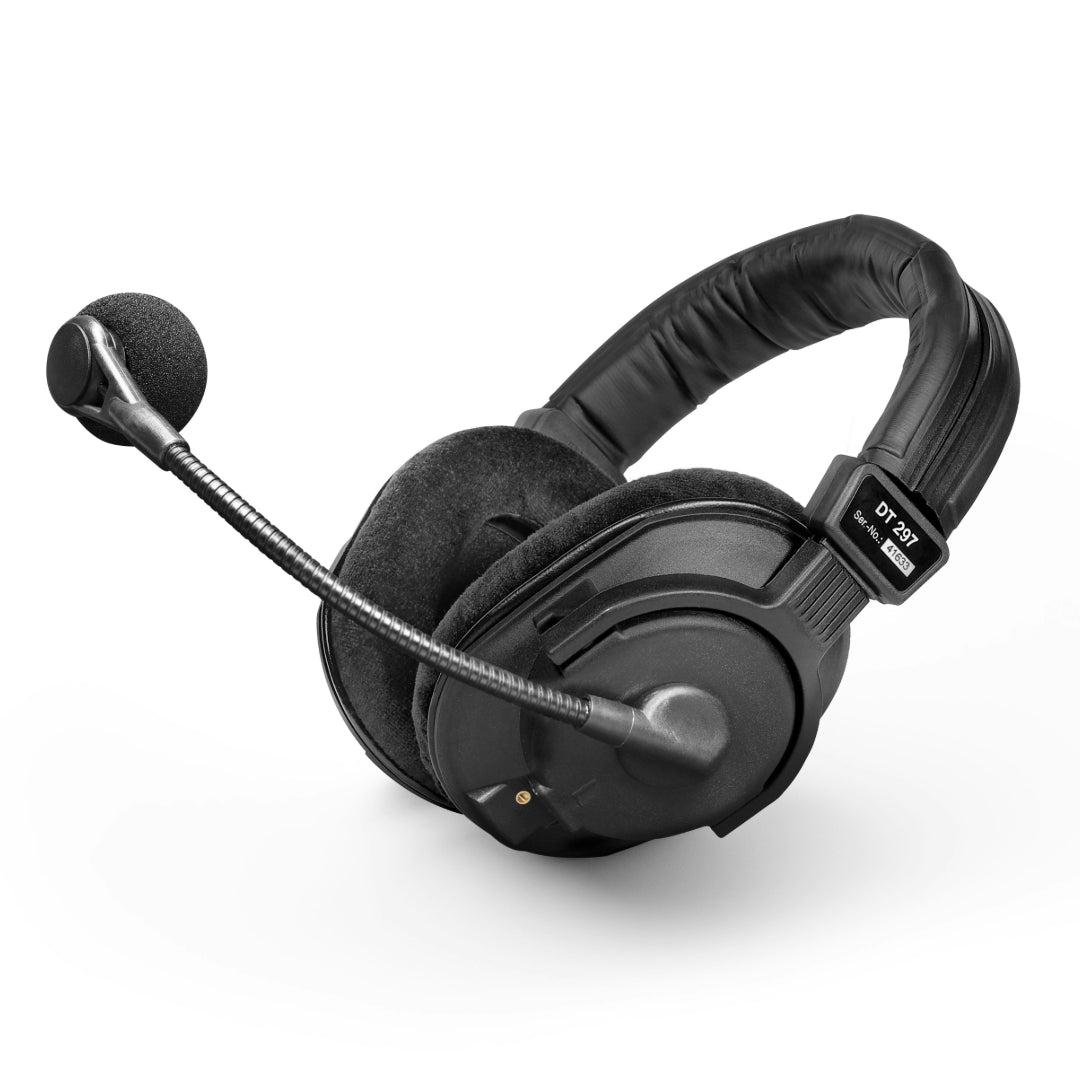

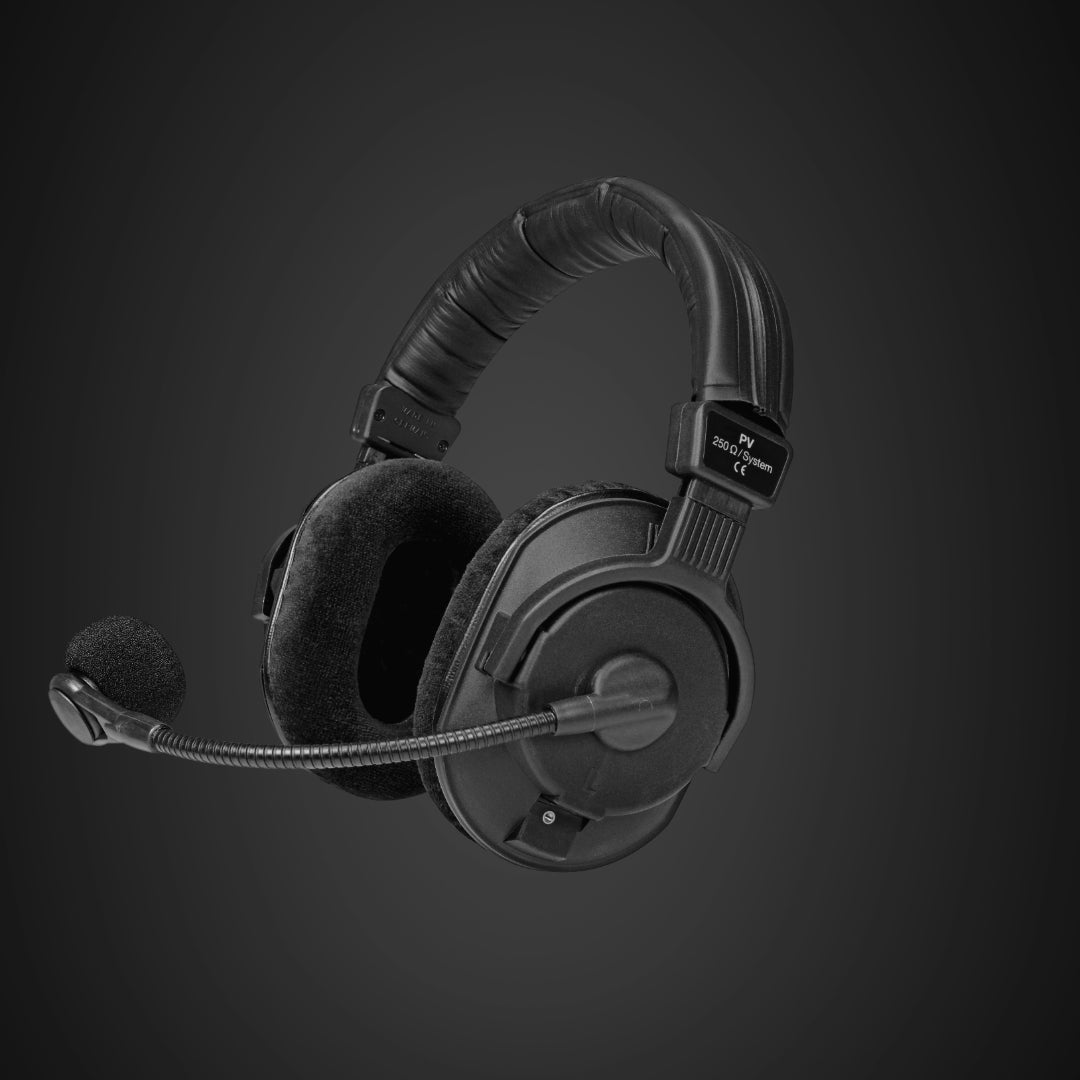

DT 297 PV MK II 80 Ohm Professional Headset

NOTE: This professional headset is not supplied with a cable. The required cable for this headset to work correctly is dependent on its interfacing product and specifications. For a list of cable options download the specifications sheet PDF on this page.

The lightweight, closed DT 297 headsets have been developed for professional broadcasting use.

The headphone features an efficient neodymium magnet system, giving very precise reproduction and excellent intelligibility. Another special feature is the wide frequency response of 10 - 30,000 Hz. The headsets are also available with 250 Ω systems.

This headset is equipped with a condenser capsule with an extended bass response. The microphone can be optimally positioned with the flexible gooseneck. The optimum distance to the mouth is around 5 to 10 cm. The frequency response for this distance corresponds to recommendations of the IRT (Institute for Radiotechnology in Munich).

The microphone holder is rotatable so that the microphone can be worn on the left or right side. The soft circumaural ear pads and the fully adjustable padded headband offer a outstanding comfort.

The cardioid polar pattern ensures high-gain-before feedback and noise cancellation. The wide frequency response ensures clear and precise speech reproduction and intelligibility.

All parts such as earpads, headband and gooseneck microphone are easy to replace.

Features:

Closed headphone
Good ambient noise attenuation
Neodymium magnet system for very high reproduction precision
Soft, circumaural ear pads
Cardioid condenser microphone
Single-sided connecting cable, plug-in type (does not include the connecting cable)
Flexible, pivotable gooseneck for optimal positioning with elasticated microphone suspension
Improvement of immunity against RFI (Radio Frequency Interference) caused by GSM, DECT, UMTS, Tetra etc.

Specifications:

Headphone
Transducer principle: . . . . . . . . . . .Dynamic
Operating principle: . . . . . . . . . . .Closed
Transmission range: . . . . . . . . . . .10 - 30,000Hz
Nominal impedance: . . . . . . . . . . 250Ω
Nominal sound pressure level at 1 kHz: . . . . . . . . . . .100dB
T.H.D.: . . . . . . . . . . < 0.2 %
Ambient noise insulation: approx. . . . . . . . . . . .16 dBA
Average pressure on ears: . . . . . . . . . . 4.5N
Weight without cable: . . . . . . . . . . 240 g

Microphone
Transducer principle: . . . . . . . . . . Condenser (back electret)
Transmission range: . . . . . . . . . . .40 - 20,000Hz
Polar pattern: . . . . . . . . . . Cardioid
Output voltage at a distance of 5 cm: . . . . . . . . . . 5.5 mV
Nominal impedance: approx. . . . . . . . . . . 300 Ω
Nominal output impedance:. . . . . . . . . .  > 1000 Ω
Open circuit voltage: . . . . . . . . . .  5mV / Paatf = 1kHz
Max. SPL: . . . . . . . . . . 132 dB
S/N ratio: 62dB
Current consumption: . . . . . . . . . . approx. 3.5mA
Phantom supply: . . . . . . . . . . 12 - 48 V
